Nokia WiFi Beacon 10
Experience Wi-Fi 6E in every room
Overview
The ultimate Wi-Fi 6E tri-band gateway
- Nokia WiFi mesh creates a seamless Wi-Fi 6E network throughout the home
- True tri-band: leverage the 2.4, 5 and 6 GHz bands
- High-speed connectivity to the Internet (10 Gbps)
- High-speed connectivity in the home (2.5 Gbps LAN port and Wi-Fi capacity of AX10200)
- Extend the coverage with up to five Beacon 10 units
- Simple, app-based setup and management.
Benefits and features
Unstoppable Wi-Fi
- Based on EasyMesh™ enriched with Nokia value added features and functionalities
- Intelligent channel selection ensures that the optimal Wi-Fi channel is always selected, avoiding any Wi-Fi glitches
- Dynamic backhaul management ensures Nokia WiFi Beacons are perfectly connected with one another
Hyper-speeds
- 10 Gbps WAN port
- 2.5 Gbps LAN port
- 2x2 MIMO on 2.4 GHz
- 4x4 MIMO on 5 GHz
- 4x4 MIMO on 6 GHz
- Supporting 160 MHz channels
- PHY rate of AXE10200
Whole home Wi-Fi coverage
- One unit covers up to 280m2 (~3000 sq. ft)
- Connect up to five mesh extenders via Ethernet or Wi-Fi to create a single network in a large or multi-story house
iF Award winners!
Nokia’s FastMile 5G Gateway 7, WiFi Beacon 24, WiFi Beacon 3.1 have been recognized with the prestigious iF Design Award in 2024
Powered by Corteca
Boost your competitiveness with value-add applications
Our application containers can enhance the user experience, create customer loyalty, and bring you new forms of revenue. Use them to diversify your value-added offer, introduce new services, and get them to your subscribers more quickly.
Manage and optimize Wi-Fi networks
- Leverage the Corteca Home Controller for an advanced helpdesk, proactive Wi-Fi optimization and network-wide visibility
- Give your customers a local web interface that can be customized (branding, stylesheets, control what the end user can see and configure).
Nokia WiFi mobile app
Ready to go
The Nokia WiFi mobile app is packed with useful features, from analytics to parental control.
The mobile app ensures that the network is quick to set up, and simple to manage.
Step-by-step instructions and tips
The Nokia WiFi mobile app gives your customers step-by-step instructions on how to install or extend the Wi-Fi network.
Scanning a QR code is the only thing they really need to do.
The app provides tips on how to connect Beacons and where to place them.
It even helps customers find the best location by testing the Wi-Fi signal.

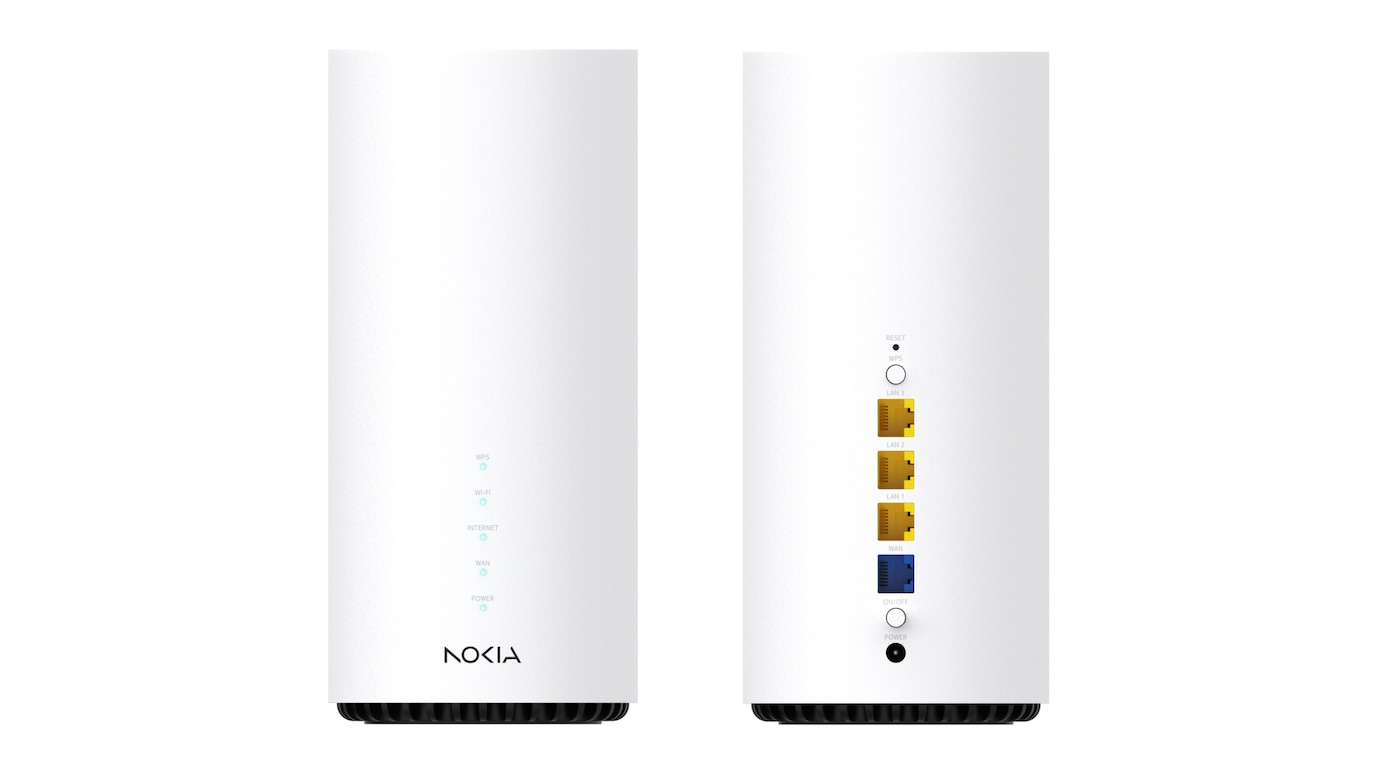

Specifications
Physical characteristics
- Height: 220 mm (8.66 in)
- Width: 101 mm (3.90 in)
- Depth: 188 mm (7.40 in)
- Weight: 1.66 kg (3.66 lb)
Wireless LAN interfaces
- 802.11b/g/n/ax 2.4 GHz: 2x2 MIMO
- 802.11a/n/ac/ax 5 GHz: 4x4 MIMO
- 802.11a/n/ac/ax 6 GHz: 4x4 MIMO
- Maximum EIRP on 2.4 GHz up to 1 W, on 5 GHz up to 2 W and on 6 GHz up to 2 W (dependent on hardware variant and local regulations)
- Supports 160 MHz channel width
Ethernet interfaces
- WAN side: One 1G/2.5G/5G/10G Base-T interface with RJ-45 connector
- LAN side: One 10M/100M/1G/2.5G Base-T interface and two 10M/100M/1000M Base-T interfaces with RJ-45 connectors
